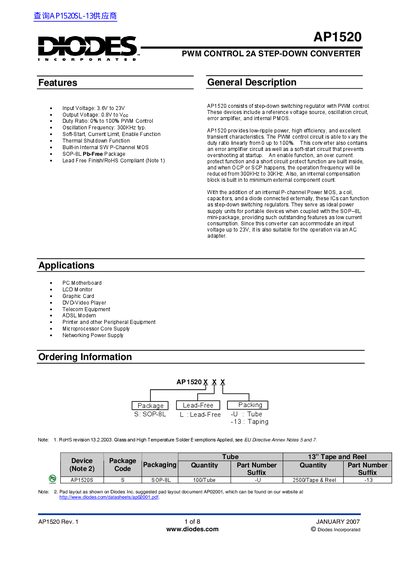

Diodes Incorporated AP1520 PWM Control Step-Down Converter Datasheet

AP1520 is a PWM-controlled 2A step-down converter with an input voltage range of 3.6V to 23V and an output voltage range of 0.8V to VCC. It features PWM control function, soft-start function, overcurrent protection function, short circuit protection function and thermal shutdown function.

Brand: DIODS
Category: Power Management
Document type: Datasheet
Language: English
Pages: 8
File format: PDF
File size: 252 KB
Published: 06 June, 2012
Updated: 30 September, 2023
MD5 checksum: 8A2E23AA697F55160A6445418BFCEA3A
PDF: Diodes Incorporated AP1520 PWM Control Step-Down Converter Datasheet PDF

About this manual

The AP1520 is a step-down switching regulator featuring PWM control designed to provide low-ripple power and high efficiency. It includes an internal P-channel Power MOSFET, allowing it to function as a complete power supply unit when coupled with external components like a coil and capacitors.

What's inside

General Description
Applications
Ordering Information
Pin Assignments
Absolute Maximum Ratings
Electrical Characteristics
Typical Application Circuit
Function Description

Specifications

Input Voltage Range	3.6V to 23V
Output Voltage Range	0.8V to Vec
Switch Current	2A
Oscillation Frequency (Typ)	300KHz
Operating Temperature Range	-20 to +85 °C

Frequently asked questions

What is the package type for the AP1520?

The device comes in an SOP-8L Pb-Free Package.

Is the AP1520 RoHS compliant?

Yes, it is a Lead Free Finish/RoHS Compliant device.
