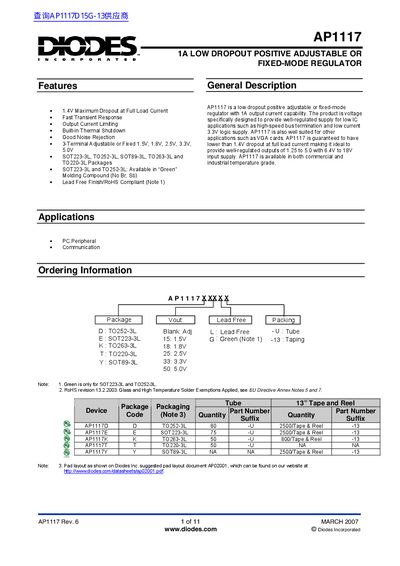

AP1117 1A Low Dropout Positive Adjustable or Fixed-Mode Regulator
The AP1117 is a 1A low dropout positive adjustable or fixed-mode regulator designed to provide well-regulated supply for applications such as high-speed bus termination and low current logic supplies. It features a maximum dropout of 1.4V at full load, fast transient response, built-in thermal shutdown, and good noise rejection.
| Output Current Capability | 1A |
|---|---|
| Maximum Dropout Voltage | 1.4V |
| Operating Junction Temperature Range (Commercial) | 0 to +125 °C |
The AP1117 provides a well-regulated supply with an output current capability of 1A.
This regulator has a maximum dropout of 1.4V when operating at full load current.
