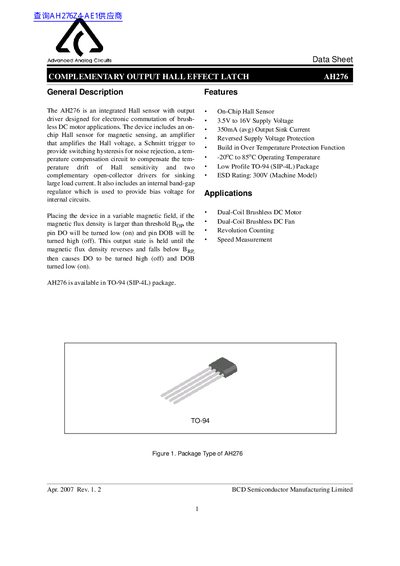

The AH276 is an integrated Hall sensor with output driver designed for electronic commutation of brushless DC motor applications. It includes an on-chip Hall sensor, an amplifier, a Schmitt trigger, a temperature compensation circuit, and two complementary open-collector drivers. The device can detect the magnetic flux density in a variable magnetic field and provide corresponding output signals.
The AH276 is an integrated Hall sensor with an output driver designed specifically for electronic commutation of brushless DC motors. The device features an on-chip Hall sensor, an amplifier, a Schmitt trigger for noise rejection, and temperature compensation circuits.
It includes two complementary open-collector drivers capable of sinking large load currents (up to 350mA average). The AH276 operates with a supply voltage between 3.5V and 16V and is available in a low-profile TO-94 package.
| Supply Voltage | 3.5V to 16V |
|---|---|
| Output Sink Current (avg) | 350mA |
| Operating Temperature Range | -20°C to 85°C |
| Package Type | TO-94 (SIP-4L) |
| Operating Point Bop (Grade A) | 10 to 50 Gauss |
It is designed for electronic commutation of brushless DC motor applications.
Yes, it includes a build-in Over Temperature Protection Function.
