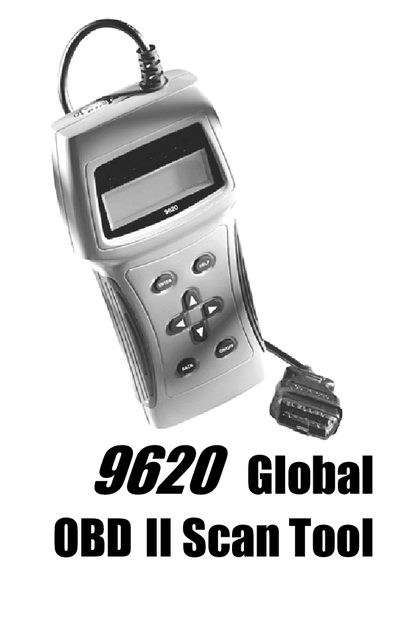

The document serves as a comprehensive guide for using the Actron 9620 Professional OBD II Scan Tool. It begins by explaining fundamental concepts of vehicle computer systems, such as what the Powertrain Control Module (PCM) controls and how OBD II technology works on vehicles from 1996 onwards.
The manual details the physical setup and operation of the scan tool, covering connections to the Data Link Connector (DLC), keyboard functions, display settings, and battery replacement. It further outlines specific diagnostic capabilities like reading and erasing codes, viewing live data, and performing monitor tests.
| Supported Vehicle Years | 1996 and up |
|---|---|
| Minimum Power Requirement | 8 volts |
| Trouble Code Capacity | 650 general and 400 manufacturer-specific codes |
The scan tool requires a minimum of 8 volts to power up.
No, connection to the battery is not required because the DLC maintains power even when the ignition is turned off.
It performs OBD II functions on all makes of OBD II compliant vehicles from 1996 and up.
