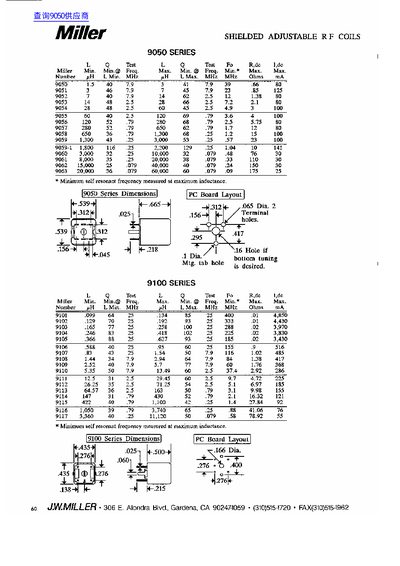

Miller 9050/9100 Series Shielded Adjustable RF Coils Datasheet

About this manual

This datasheet provides technical specifications for the Miller 9050 Series and 9100 Series of Shielded Adjustable RF Coils. The document lists specific part numbers with corresponding electrical characteristics such as minimum and maximum inductance (L), operating frequency ranges, resistance (Ohms), and current ratings (mA).

What's inside

• 9050 Series Specifications
• 9100 Series Specifications
• Inductance Values
• Frequency Ranges
• Resistance and Current Ratings
• PC Board Layout Dimensions

Specifications

Frequently asked questions

What is the minimum self resonant frequency for these coils?

The minimum self resonant frequency is measured at maximum inductance.

How many terminal holes are required for the 9050 Series?

The layout requires two .665 x .065 Dia. holes.
