The document describes the characteristics and features of three models of diodes (LL4148, LS4148, and MCL4148), including packaging and dimension information. These products are suitable for surface mount and axial lead applications.
This document provides technical specifications and packaging details for the TEMIC Signal Diode series. It covers three specific variants: LL4148 in a SOD-80 package, LS4148 in a Quadro MELF package, and MCL4148 in a Micro MELF package.

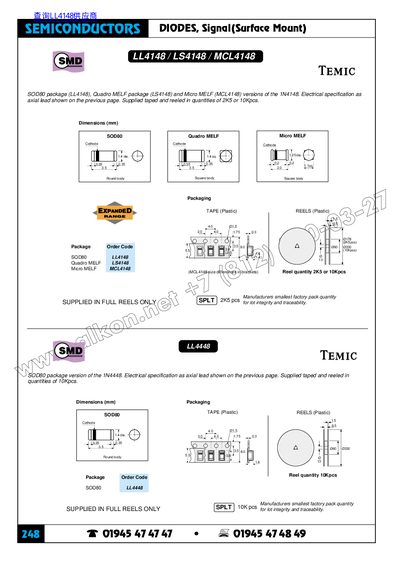

The datasheet includes dimensional drawings for each package type (SOD-80, Quadro MELF, and Micro MELF) and details the available reel quantities. The products are supplied as replacements for the 1N4148 diode.
The diodes are supplied in quantities of 2K5 or 10Kpcs.
