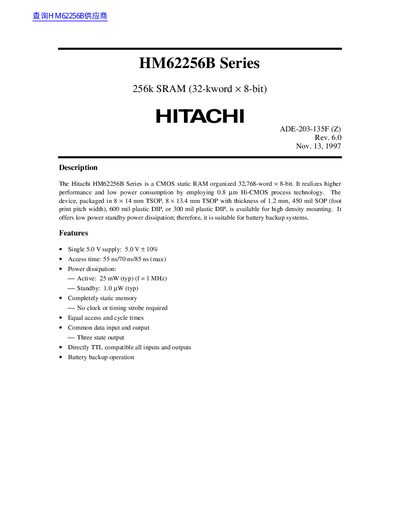

The Hitachi HM62256B Series is a CMOS static RAM organized 32,768-word × 8-bit. It realizes higher performance and low power consumption by employing 0.8 µm Hi-CMOS process technology. The device, packaged in 8 × 14 mm TSOP, 8 × 13.4 mm TSOP with thickness of 1.2 mm, 450 mil SOP (foot print pitch width), 600 mil plastic DIP, or 300 mil plastic DIP, is available for high density mounting. It offers low power standby power dissipation; therefore, it is suitable for battery backup systems.
The Hitachi HM62256B Series is a 32-kword x 8-bit CMOS static RAM designed for high-density mounting applications. It utilizes 0.8 µm Hi-CMOS process technology to achieve higher performance with low power consumption, making it suitable for battery backup systems due to its low standby power dissipation.
| Memory Organization | 32,768-word x 8-bit |
|---|---|
| Supply Voltage | 5.0 V + 10% |
| Access Time (Max) | 85 ns |
| Active Power Dissipation | 25 mW (typ) |
| Standby Power Dissipation | 1.0 µW (typ) |
| Operating Temperature Range | 0 to +70 °C |
The device is organized as 32,768-word x 8-bit.
Yes, all inputs and outputs are directly TTL compatible.
No, it is completely static memory with no clock or timing strobe required.
