AE Ae PLCC Series Plastic Leaded Chip Carrier Datasheet

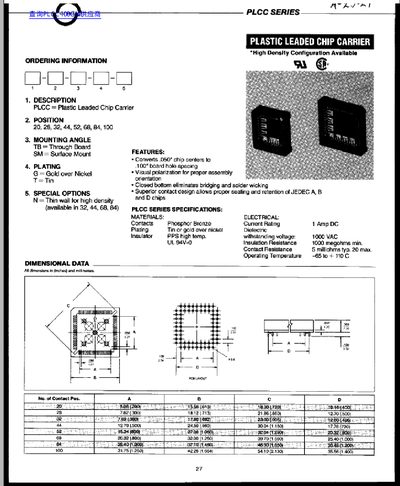

AE Ae PLCC Series Plastic Leaded Chip Carrier Datasheet - cover page
Brand
PLCC
Category
Chips
Document type
Datasheet
Language
English
Pages
1
File format
PDF
File size
46 KB
Published
05 June, 2012
Updated
05 June, 2012
MD5 checksum
AEC7EA279CBC0E7D8FF6F92DA6935EA5
PDF
AE Ae PLCC Series Plastic Leaded Chip Carrier Datasheet PDF

About this manual

This document provides technical details for the AE Ae PLCC Series Plastic Leaded Chip Carriers. It includes ordering codes, a description of the product's function to convert 050° chip centers to board hole spacing, and available mounting options such as Through Board (TB) and Surface Mount (SM).

What's inside

  • ORDERING INFORMATION
  • DESCRIPTION
  • POSITION
  • MOUNTING ANGLE
  • PLATING
  • SPECIAL OPTIONS
  • PLOC SERIES SPECIFICATIONS
  • DIMENSIONAL DATA

Specifications

Current Rating1 Amp
Dielectric Insulator MaterialPPS high tern.
Withstanding Voltage1000 VAC
Operating Temperature Range-65 to +190.6
Contact Resistance5 milliohms typ.

Frequently asked questions

What is the current rating for these contacts?

The electrical specifications state a current rating of 1 Amp.

Download PDF (46 KB)
