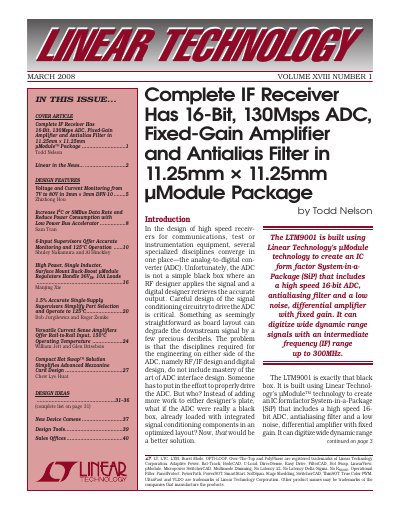

The LTM9001 is a complete IF receiver that includes a 16-bit, 130Msps ADC, a fixed-gain amplifier, and an antialiasing filter in a 11.25mm x 11.25mm µModule package.
The Linear Technology LTM9001 is an integrated signal conditioning component built using the company's µModule™ technology. It functions as a System-in-a-Package (SiP) that combines a high-speed 16-bit Analog-to-Digital Converter (ADC), an antialiasing filter, and a low-noise differential amplifier with fixed gain into a single IC form factor package.
Designed to simplify the design of high-speed receivers for communications, test, and instrumentation equipment, the LTM9001-AA model specifically features a 16-bit ADC sampling at 130Msps. The module includes an internal antialiasing filter optimized for a 162.5MHz intermediate frequency (IF) range and provides a fixed gain of 20dB with a differential input impedance of 200Ω.
It has an input impedance of 200 Ω and an input range of ±250mV.
