This document describes the features and characteristics of the P110 rotary potentiometer from BI Technologies Corporation, including the styles of different models, electrical characteristics, mechanical characteristics, and environmental characteristics.

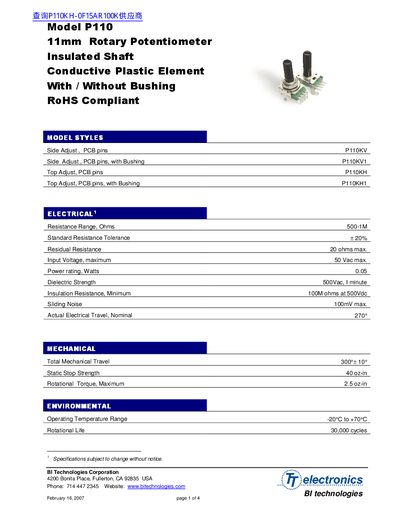

This document provides technical specifications and ordering information for the BI Technologies Model P110 series of 11mm rotary potentiometers. The components feature an insulated shaft, a conductive plastic element, and are available with or without bushings. They comply with RoHS standards and offer side or top adjustment options depending on the specific model variant.
| Resistance Range | 500-1M Ohms |
|---|---|
| Standard Resistance Tolerance | + 20% |
| Residual Resistance | 20 ohms max. |
| Input Voltage | 50 Vac max. |
| Power rating | 0.05 Watts |
| Dielectric Strength | 500Vac, 1 minute |
| Insulation Resistance | Minimum 100M ohms at 500Vdce |
| Sliding Noise | 100mV max. |
| Actual Electrical Travel | Nominal 270° |
| Total Mechanical Travel | 300°+ 10° |
| Static Stop Strength | 40 oz-in |
| Rotational Torque, Maximum | 2.5 oz-in |
| Operating Temperature Range | -20°C to +70°C |
| Rotational Life | 30,000 cycles |
The maximum input voltage rating is 50 Vac.
The rotational life is rated for 30,000 cycles.
