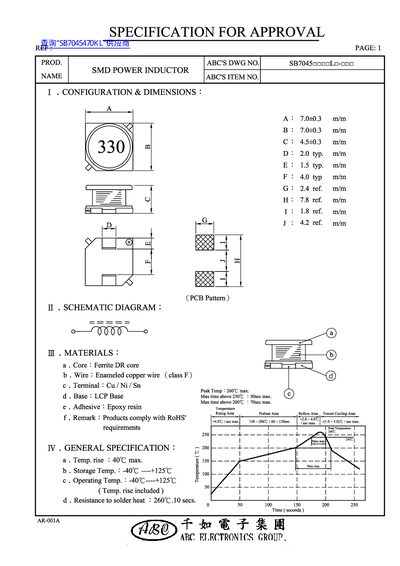

This document is a specification sheet for the ABC Electronics Group SB7045 series SMD power inductor. It details physical configuration, materials used such as ferrite cores and enameled copper wire, and general specifications including temperature rise limits and soldering resistance.
The datasheet provides comprehensive electrical characteristics tables listing various inductance values from 1.2uH to 4700uH with corresponding saturation current (Isat), DC resistance (DCR), and dimensions. It also includes packaging information, reliability test conditions, and a list of UL recognized magnet wire types compatible with the product.
| Core Material | Ferrite DR core |
|---|---|
| Wire Type | Enameled copper wire (class F) |
| Terminal Material | Cu/Ni/Sn |
| Peak Temperature | 260C max. |
| Base Material | LCP Base |
| Max Time Above 230C | 30sec max. |
| Operating Temperature Range | -40C ---+125C |
| Temperature Rise Limit | 40C max. |
