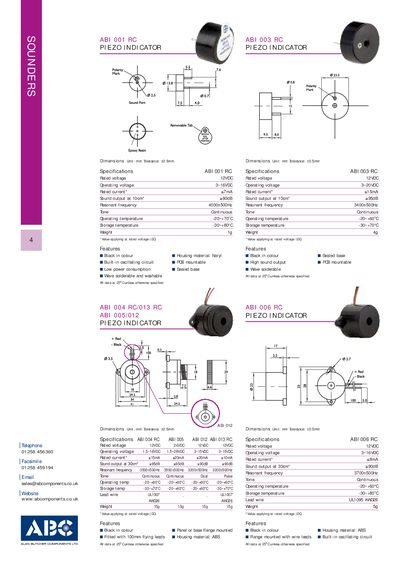

This document is a specification sheet for ABI 001 RC, ABI 003 RC, ABI 004 RC/013 RC, ABI 005/012 piezo indicators, which details the product model, features, parameters, dimensions and other information.
This leaflet lists a range of piezo indicators and transducers supplied by Alan Butcher Components Ltd. Each model entry includes dimensions, electrical ratings, sound output, resonant frequency, temperature limits and material details.
The document provides technical data for models such as ABI 001 RC, ABI 003 RC, ABT 403 RG and many others, helping designers select the appropriate part for their applications.
| Rated voltage | 12 VDC |
|---|---|
| Operating voltage | 3‑16 VDC |
| Rated current | 7 mA |
| Sound output at 10 cm | 280 dB |
| Resonant frequency | 4000‑4500 Hz |
| Operating temperature | -20 °C to +70 °C |
| Weight | 4 g |
| Housing material | Noryl |
The ABI 001 RC is rated at 12 VDC.
They operate from –20 °C up to +70 °C.
The housing is made of Noryl plastic.
It produces about 280 dB at 10 cm.
