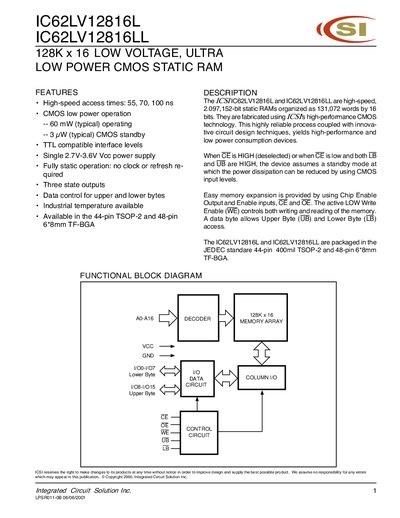

This document describes the IC62LV12816L and IC62LV12816LL, which are high-speed static RAMs organized as 131,072 words by 16 bits. Fabricated using JCS7s high-performance CMOS technology, these devices offer low power consumption with typical operating power of 60 mW and standby current as low as 5 µA.
| Organization | 128K x 16 bits (131,072 words by 16 bits) |
|---|---|
| Operating Voltage | 2.7V - 3.6V |
| Access Times | 55, 70, 100 ns |
| Typical Operating Power | 60 mW |
| Typical Standby Current | 5 µA |
| Temperature Range (Commercial) | 0°C to +70°C |
| Temperature Range (Industrial) | -40°C to +85°C |
The device operates with a single 2.7V-3.6V Vcc power supply.
No, the device features fully static operation requiring no clock or refresh.
The parts are available in 44-pin TSOP-2 and 48-pin TF-BGA packages.
