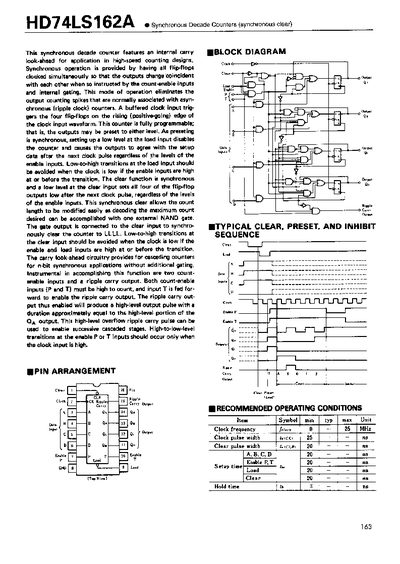

This document describes the HD74LS162A, a synchronous decade counter designed with an internal carry look-ahead circuit for high-speed counting applications. The device features four flip-flops clocked simultaneously to eliminate output spikes associated with asynchronous counters, allowing for cascading without additional gating.
The datasheet provides detailed electrical and switching characteristics, including maximum clock frequency of 25 MHz, typical propagation delays, and operating conditions. It also includes pin arrangements, block diagrams, recommended operating sequences for clear and load functions, and mechanical dimensions for various package types.
| Maximum clock frequency | 25 MHz |
|---|---|
| Maximum clock pulse width | 35 ns |
The maximum clock frequency is 25 MHz.
A low level at the clear input sets all four flip-flop outputs low after the next clock pulse.
No, this product is not designed to be radiation resistant.
