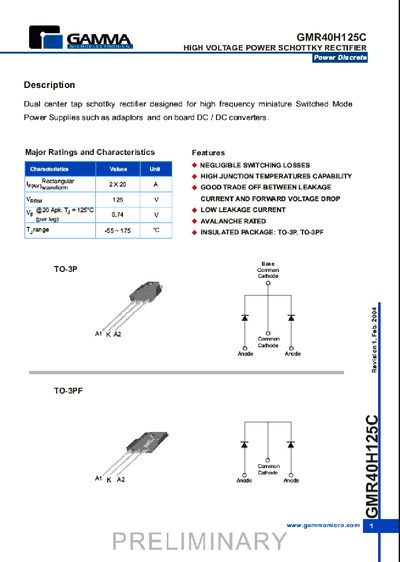

This document is a technical datasheet for the Gamma Micro GMR40H125C, a high voltage power schottky rectifier designed for high frequency miniature switched mode power supplies. The device features dual center tap construction with negligible switching losses and high junction temperature capability up to 175°C.
| Maximum repetitive peak reverse voltage | 125 V |
|---|---|
| Maximum average forward rectified current per device | 40 A |
| Operating junction and storage temperature range | -65 to +175 °C |
| Typical thermal resistance per leg (TO-3P) | 1.25 °C/W |
The maximum average forward rectified current per device is 40 A.
The GMR40H125C is available in TO-3P and TO-3PF packages.
