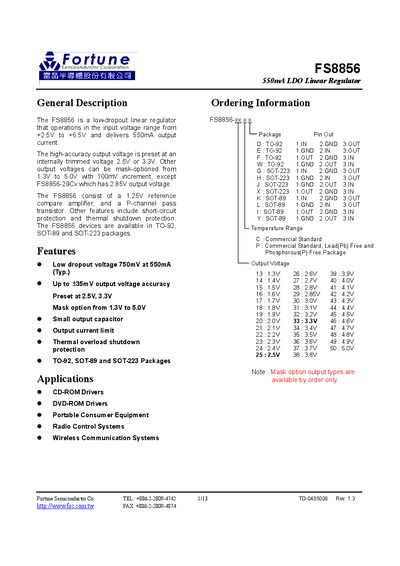

The FS8856 is a low-dropout linear regulator from Fortune Semiconductor Co. It operates in the input voltage range from +2.5V to +6.5V and delivers 550mA output current. The high-accuracy output voltage is preset at an internally trimmed voltage 2.5V or 3.3V. Other output voltages can be mask-optioned from 1.3V to 5.0V with 100mV increment. The FS8856 consists of a 1.25V reference compare amplifier, and a P-channel pass transistor. Other features include short-circuit protection and thermal shutdown protection. The FS8856 devices are available in TO-92, SOT-89 and SOT-223 packages.
The FS8856 is a low-dropout (LDO) linear regulator designed for portable consumer equipment and wireless communication systems. It operates within an input voltage range of +2.5V to +6.5V and provides preset output voltages of 2.5V or 3.3V, with mask options available from 1.3V to 5.0V in 100mV increments.
Key features include short-circuit protection, thermal shutdown protection, and high accuracy for the standard output voltages. The device is available in TO-92, SOT-89, and SOT-223 packages.
| Output Current | 550mA |
|---|---|
| Input Voltage Range | +2.5V to +6.5V |
| Dropout Voltage (Typ) | 750mV at 550mA |
| Output Voltage Accuracy | +/-35mV |
| Thermal Shutdown Protection | Yes |
The device offers preset outputs of 2.5V or 3.3V, with mask options from 1.3V to 5.0V in 100mV increments.
The FS8856 is available in TO-92, SOT-89, and SOT-223 packages.
It is suitable for CD-ROM/DVD-ROM drivers, portable consumer equipment, radio control systems, and wireless communication systems.
