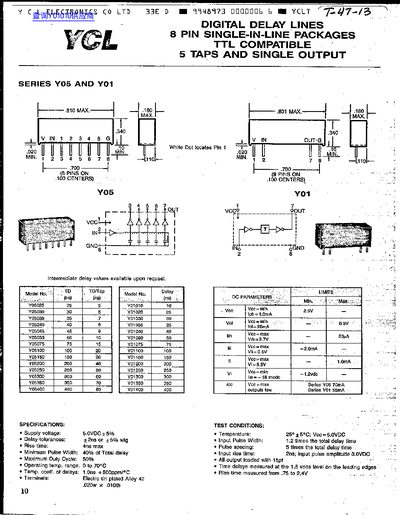

This document provides specifications for the YCL Series YO5 and YO1 digital delay lines. These components are housed in 8-pin single-in-line packages (SIP) and feature TTL compatibility with a single output derived from five taps.
The datasheet lists specific models ranging from 25ns to 300ns delays, detailing their DC electrical parameters such as input/output voltages and currents. It also outlines operating conditions including supply voltage of 5.0VDC, temperature range of 0 to 70°C, and test conditions for delay tolerances.
| Package Type | 8 PIN SINGLE-IN-LINE PACKAGES |
|---|---|
| Logic Compatibility | TTL COMPATIBLE |
| Number of Taps | 5 TAPS AND SINGLE OUTPUT |
| Delay Tolerance | +2ns or +5% |
Yes, intermediate delay values are available upon request.
The devices operate within a temperature range of 0 to 70°C.
The maximum rise time is 4ns.
