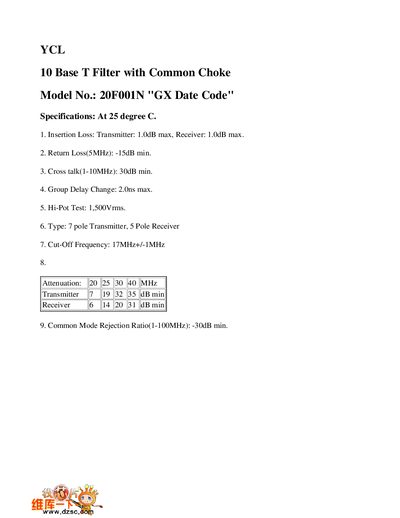

This document mainly introduces the features and characteristics of YCL 10 Base T Filter with Common Choke Model No.: 20F001N, including Insertion Loss, Return Loss, Cross talk, Group Delay Change, Hi-Pot Test, Type, Cut-Off Frequency, Attenuation, Common Mode Rejection Ratio.
This document provides technical specifications for the YCL Model No. 20F001N, a 10 Base T Filter with Common Choke. The device is designed to operate at 25 degrees Celsius and features a 7-pole transmitter configuration and a 5-pole receiver configuration.
| Insertion Loss (Transmitter) | 1.0dB max |
|---|---|
| Insertion Loss (Receiver) | 1.0dB max |
| Return Loss | -15dB min |
| Cross talk (1-10MHz) | 30dB min |
| Group Delay Change | 2.0ns max |
| Hi-Pot Test | 1,500Vrms |
| Type | 7 pole Transmitter, 5 Pole Receiver |
| Cut-Off Frequency | 17MHz+/-1MHz |
| Common Mode Rejection Ratio (1-100MHz) | -30dB min |
The maximum insertion loss is 1.0dB for both the transmitter and the receiver.
The maximum group delay change is 2.0ns.
