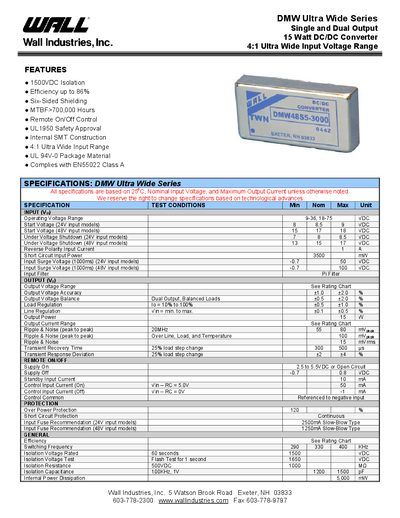

DMW Ultra Wide Series is a 15-watt DC/DC converter from Wall Industries, Inc. that has a 4:1 ultra wide input voltage range, up to 86% efficiency, MTBF>700,000 hours, and is UL1950 safety approved.
The document provides a comprehensive overview of the DMW Ultra Wide Series DC/DC converters manufactured by Wall Industries. Key features include up to 86% efficiency, 1500VDC isolation, and an ultra-wide input voltage range with a 4:1 ratio. The series is available in both single and dual output configurations.
| Output Power | 15 W |
|---|---|
| Isolation Voltage Rated | 1500 VDC |
| Efficiency (Max) | 86% |
| Operating Temperature Range | -40 +60 °c |
| Switching Frequency | 290 330 400 KHz |
The operating voltage range for 24V input models is 9-36 VDC.
The unit operates in ambient temperatures as low as -40°C.
