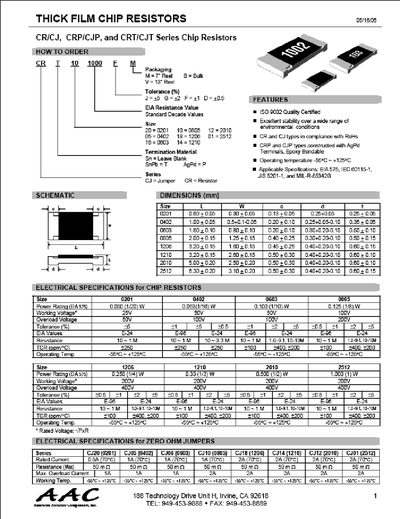

AAC Thick Film Chip Resistors CR/CJ Series Product Specification

This document provides specifications information about American Accurate Components Inc. thick film chip resistors, including dimensions, types, package quantities, etc.

Brand: AAC
Category: electronic components
Document type: Product Leaflet
Language: English
Pages: 4
File format: PDF
File size: 196 KB
Published: 05 June, 2012
Updated: 30 September, 2023
MD5 checksum: E888D3D56CDE40BC2147A34B77DAD14A
PDF: AAC Thick Film Chip Resistors CR/CJ Series Product Specification PDF

About this manual

This document provides technical specifications for AAC's CRICJ, CRP/CJP, and CRT/CJT series thick film chip resistors. It details physical dimensions, electrical characteristics such as power ratings and tolerance, operating temperatures, and compliance with standards like RoHS and MIL-R-55342.

What's inside

Features
How to Order
Schematic Dimensions
Electrical Specifications for Chip Resistors
Electrical Specifications for Zero Ohm Jumpers
Characteristics
EIA Standard Values
Marking Code
Tape Schematic and Reel Drawings
Engineering Kits

Specifications

Series Types	CRICJ, CRP/CJP, CRT/CJT
Tolerance Options	±1%, ±5%
Quality Certification	ISO 9002 Quality Certified

Frequently asked questions

Are AAC chip resistors lead-free?

Yes, new production items of the CR and CJ series are no longer containing tin-lead (SnPb) terminals.

What standards do these resistors comply with?

They comply with RoHS, IEC 60115-1, JIS C6201-1, and MIL-R-55342.

What is the resistance range for these chip resistors?

The resistance range is from 1Ω to 1MΩ.
