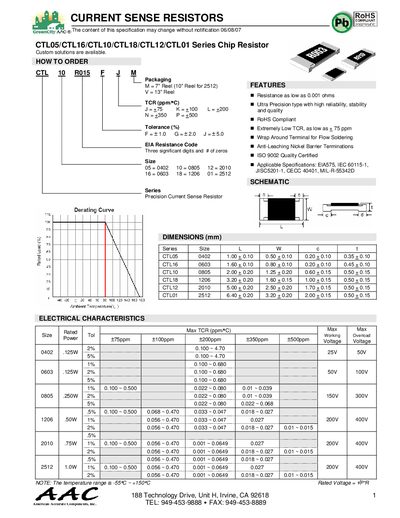

This document introduces the ordering method, dimensions, and electrical characteristics of American Accurate Components' CTL series current sense resistors.
The CTL series from AAC (American Accurate Components) includes current sense chip resistors ranging from 0.001 Ω up to several ohms, with ultra‑low TCR and high reliability. Custom solutions are available and the parts are RoHS compliant.
The datasheet lists electrical characteristics such as voltage ratings up to 200 V, temperature range –55 °C to +150 °C, and power ratings from 0.1 W to 1 W. Packaging options include 7" reels (10" reels for 2512 size) and detailed dimensions for each size code.
| Minimum resistance | 0.001 Ω |
|---|---|
| TCR (temperature coefficient) | as low as +75 ppm/°C |
| RoHS compliance | Yes |
| Operating temperature range | -55 °C ~ +150 °C |
| Reel packaging | 7" Reel (10" Reel for 2512) |
The resistors operate from –55 °C up to +150 °C.
Yes, the CTL series resistors are RoHS compliant.
