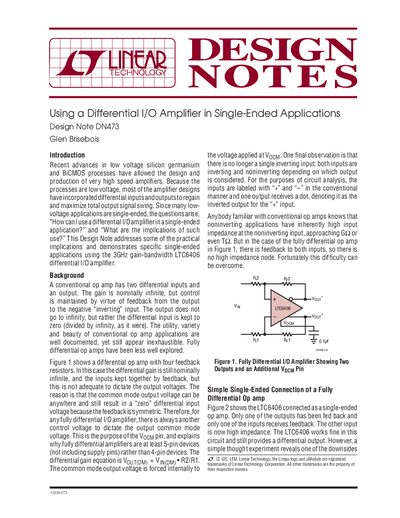

Linear Technology DN473 Using a Differential I/O Amplifier in Single-Ended Applications Design Note

This Design Note addresses some of the practical implications and demonstrates specific single-ended applications using the 3GHz gain-bandwidth LTC6406 differential I/O amplifier.

Brand: Linear Technology
Category: amplifier
Document type: Application Note
Language: English
Pages: 2
File format: PDF
File size: 95 KB
Published: 05 June, 2012
Updated: 28 September, 2023
Model: LTC6406
MD5 checksum: 111563A5E7F1F52B450B72E671401E39
PDF: Linear Technology DN473 Using a Differential I/O Amplifier in Single-Ended Applications Design Note PDF

About this manual

This document addresses practical implications of using fully differential input/output amplifiers, specifically the LTC6406, in single-ended applications. It discusses the noise gain issues introduced by single-ended feedback configurations around such devices.
