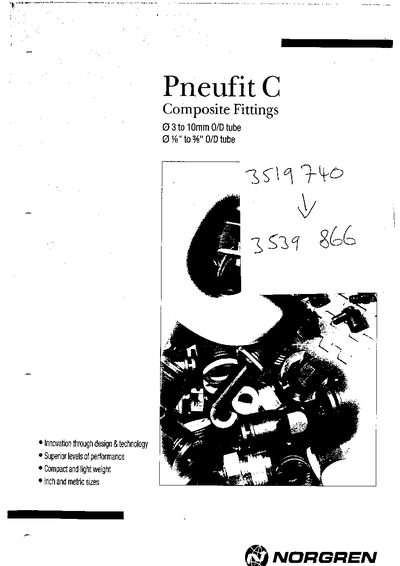

This document provides an overview of the Norgren Pneufit C composite fittings, designed for compressed air applications with vacuum to 18 bar operating pressure. The fittings feature a releasable grab ring technology combining plastic and brass components, suitable for gripping soft PU tubing through to copper and stainless steel.
| Operating pressure | Vacuum - 18 bar unless otherwise stated |
|---|---|
| Ambient temperature | -20° to +80°C |
| Tube sizes (O/D) | 3mm to 10mm & 1/8" to 3/8" |
| Medium | Compressed air |
The bodies are made of plastic - PBT, except for straight adaptors and straight stem adaptors which are nickel plated brass.
The grab ring is made of stainless steel - BS 1440 Pt 2, grade 301.521.
The fittings use silicone free nitrile 'O' rings.
