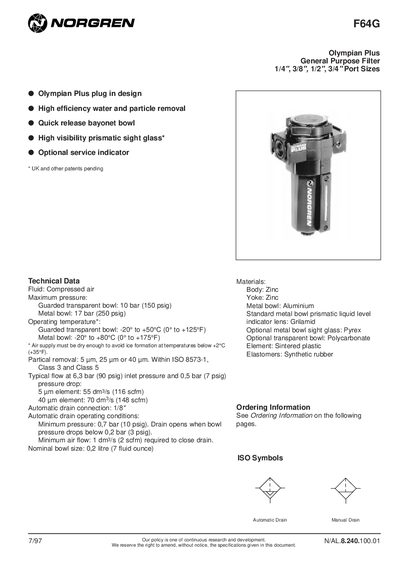

This document describes the features and characteristics of the 7/97 N/AL.8.240.100.01 F64G Automatic Drain Manual Drain Olympian Plus General Purpose Filter, including high efficiency water and particle removal, quick release bayonet bowl, high visibility prismatic sight glass, etc.
The NORGREN F64G is a General Purpose Filter featuring the Olympian Plus plug‑in design, high‑efficiency water and particle removal, a quick‑release bayonet bowl, and an optional high‑visibility prismatic sight glass. Optional accessories include a service indicator and wall‑mounting bracket.
Technical data include maximum pressures of 10 bar (transparent bowl) and 17 bar (metal bowl), operating temperatures from –20 °C to +80 °C, typical flow rates of up to 70 dm³/s (148 scfm) with a 40 µm element, and a nominal bowl size of 0.2 L. Ordering tables list port sizes (1/4", 3/8", 1/2", 3/4"), flow capacities, and weight for each configuration.
| Maximum pressure (transparent bowl) | 10 bar (150 psig) |
|---|---|
| Maximum pressure (metal bowl) | 17 bar (250 psig) |
| Operating temperature (transparent bowl) | -20 °C to +50 °C |
| Operating temperature (metal bowl) | -20 °C to +80 °C |
| Minimum pressure for automatic drain | 0.7 bar (10 psig) |
| Nominal bowl size | 0.2 litre (7 fluid ounce) |
| Body material | Zinc |
| Metal bowl material | Aluminium |
| Optional sight glass material | Pyrex |
The metal bowl can handle up to 17 bar (250 psig).
The filter is offered with 1/4", 3/8", 1/2" and 3/4" port sizes.
The automatic drain opens when bowl pressure drops below 0.2 bar (3 psig) and requires a minimum airflow of 1 dm³/s (2 scfm) to close.
