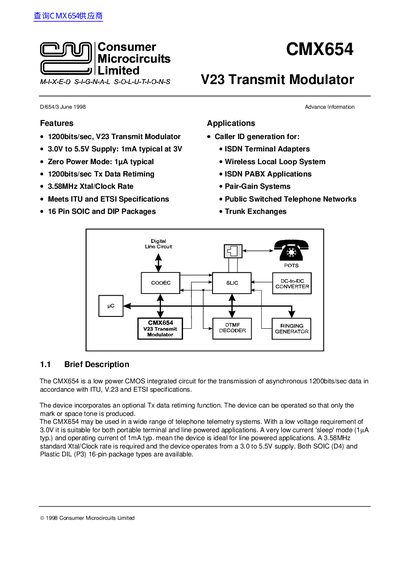

CMX654 is a low power CMOS integrated circuit for the transmission of asynchronous 1200bits/sec data in accordance with ITU, V.23 and ETSI specifications. The device incorporates an optional Tx data retiming function. The device can be operated so that only the mark or space tone is produced. The CMX654 may be used in a wide range of telephone telemetry systems.
The CMX654 is a low power CMOS integrated circuit designed for the transmission of asynchronous 1200 bits/sec data. It operates from a 3.0V to 5.5V supply and meets ITU, V.23, and ETSI specifications. The device incorporates an optional Tx data retiming function and can be operated in various modes including 'Zero-Power' mode for minimal current consumption.
| Data Rate | 1200 bits/sec |
|---|---|
| Supply Voltage Range | 3.0V to 5.5V |
| Operating Current (Typical) | 1mA |
| Zero Power Mode Current | 1µA typical |
| Clock Rate | 3.58MHz |
| Package Types | 16 Pin SOIC and DIP Packages |
The device meets ITU, V.23, and ETSI specifications for data transmission.
The typical operating current is 1mA when supplied with a voltage between 3.0V and 5.5V.
The device is available in both SOIC (D4) and Plastic DIL (P3) 16-pin package types.
