STC62WV1024 is a low power CMOS SRAM from STC, with a working voltage range of 2.4V ~ 5.5V, maximum operating current of 17mA (@55ns) / 14mA (@70ns), maximum standby current of 0.1uA (typical), and maximum access time of 55ns/70ns.

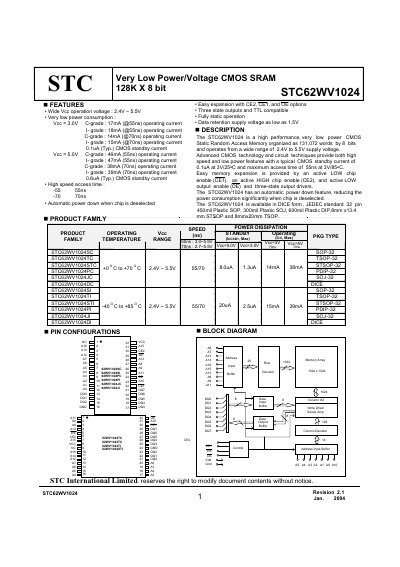

The document describes the STC62WV1024, a high-performance Very Low Power/Voltage CMOS SRAM organized as 131,072 words by 8 bits. It features automatic power-down when deselected and data retention down to 1.5V supply voltage.
| Organization | 131,072 words by 8 bits |
|---|---|
| Operating Voltage Range | 2.4V ~ 5.5V |
| Typical Standby Current (3V) | 0.1uA |
| Max Access Time (55ns grade) | 55ns |
| Operating Temperature Range | -40°C to +85°C |
The device supports data retention with a supply voltage as low as 1.5V.
The device features automatic power down, reducing power significantly when the chip is deselected.
