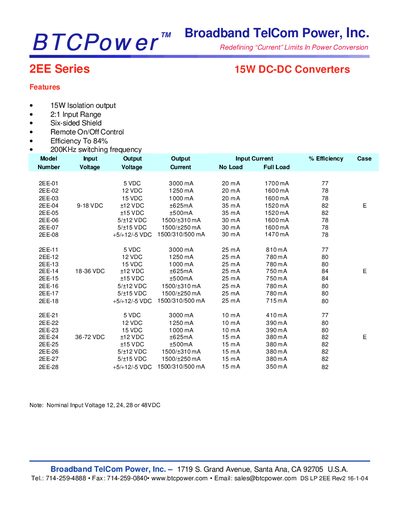

Broadband TelCom Power 2EE Series 15W DC-DC Converters Datasheet

This data sheet lists the model, input and output voltage, current, efficiency and other parameters of the 2EE series 15W DC-DC converters.

Brand: Broadband
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 78 KB
Published: 05 June, 2012
Updated: 30 September, 2023
MD5 checksum: 93A9246BFC2B578B051833B0529E3E66
PDF: Broadband TelCom Power 2EE Series 15W DC-DC Converters Datasheet PDF

About this manual

This document is a technical datasheet for the Broadband TelCom Power (BTCPower) 2EE Series of 15W isolated DC-DC converters. The series offers various input voltage ranges including nominal 12V, 24V, 28V, and 48V options.

What's inside

Features
Specifications
Pin Connection
Outline Information
Triple output loading table

Specifications

Power Output	15W
Switching Frequency	200KHz
Efficiency	Up to 84%
Isolation Resistance	100K ohms
Operating Temperature Range	-28°C ~ +47°C

Frequently asked questions

What is the maximum efficiency of the 2EE Series?

The datasheet states that the efficiency reaches up to 84%.

What is the maximum efficiency of the 2EE Series converters?

The converters achieve an efficiency up to 84%.
