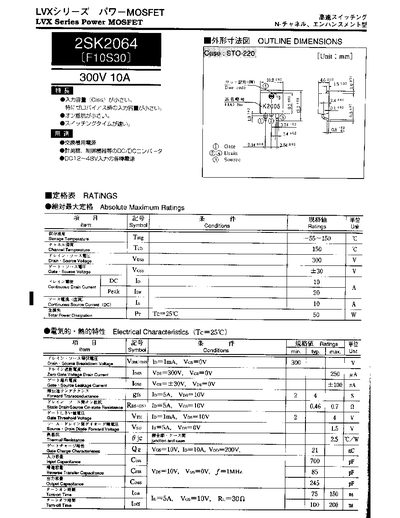

This document is a technical datasheet for the LVXY 2SK2064, an N-channel Power MOSFET in the LVXY Series. The device features a TO-220 package outline with specific dimensions provided in millimeters.
The datasheet details absolute maximum ratings including a junction temperature of 150°C and a drain-source voltage of 300V. It also lists key electrical characteristics such as on-state resistance, gate charge, and capacitance values measured at standard conditions.
| Drain-Source Voltage (Vdss) | 300 V |
|---|---|
| Total Power Dissipation (Pd) | 50 W |
| Junction Temperature (Tj) | 150 C |
| On-State Resistance (Rds(on)) | 0.46 Ohm |
| Input Capacitance (Ciss) | 700 pF |
The maximum channel (junction) temperature is 150°C.
The continuous drain current (DC) is rated at 10 A.
