This document introduces the DIP switch products from Grayhill, Inc. The switch features multiple coding options and output types, and it can be installed either through surface mount or traditional through-hole mounting methods.

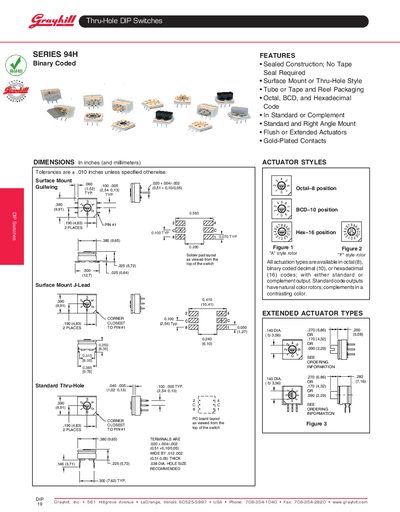

This document provides technical specifications and dimensional drawings for the Grayhill Series 94H Binary Coded DIP switches. It covers various mounting options including surface mount (J-Lead) and thru-hole (standard and right angle), as well as flush or extended actuators.
The guide includes ordering information for different actuator styles, output codes (Octal, BCD, Hexadecimal), and packaging types such as tube or tape and reel. It also lists part numbers for high-temperature knobs compatible with specific switch models.
| Output Codes | Octal, BCD, and Hexadecimal Code |
|---|---|
| Mounting Styles | Surface Mount or Thru-Hole Style |
| Packaging Options | Tube or Tape and Reel Packaging |
Yes, the switches are RoHS compliant.
