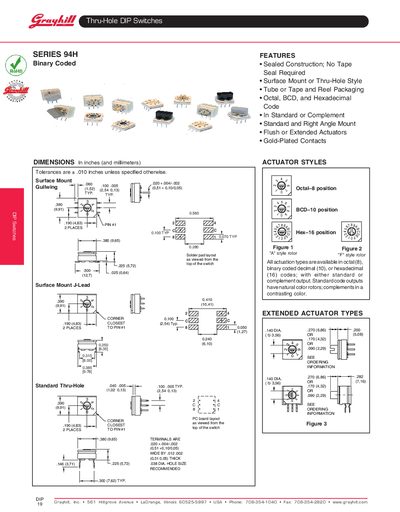

This document provides information about Grayhill, Inc.'s DIP switches, including their dimensions, layout, and connection methods.
The Series 94H binary coded DIP switches are offered in sealed construction with optional surface‑mount or thru‑hole styles. They support octal (8), binary‑coded decimal (10) and hexadecimal (16) coding, with either standard (natural) or complementary output. Actuator styles range from flush to extended types, and contacts are gold‑plated for reliability.
The switches are RoHS compliant and available in tube, tape‑and‑reel, or right‑angle packaging. Ordering information includes part numbers for each actuator style and knob option, with typical packaging of 27 pieces per tube for surface‑mount and thru‑hole devices and 24 pieces per tube for right‑angle switches. Detailed dimensions and tolerances are provided for PCB layout.
| Tolerance | +0.010 inches (unless otherwise specified) |
|---|---|
| Actuator Style A | Flush |
| Number of Positions | 8 (Octal), 10 (BCD), 16 (Hex) |
| Tape‑and‑Reel Package Quantity | 27 pieces per tube (surface‑mount & thru‑hole), 24 pieces per tube (right‑angle) |
| RoHS | Compliant |
The Series 94H switches are available in octal (8), binary‑coded decimal (10), and hexadecimal (16) codes, with either standard (natural) or complementary output.
Each tape‑and‑reel tube contains 27 pieces for surface‑mount and thru‑hole switches, or 24 pieces for right‑angle switches.
Yes, the Series 94H switches meet RoHS requirements.
