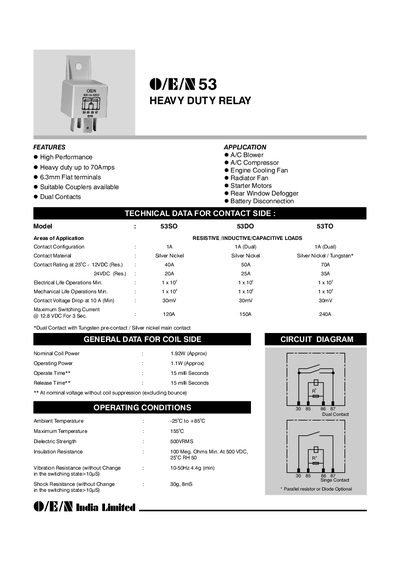

This document provides technical specifications for the O/E/N 53 series of heavy-duty relays. Key features include high performance with contact ratings up to 70A at 12VDC and suitability for resistive, inductive, and capacitive loads. The relay is designed with dual contacts made of silver nickel or silver nickel/tungsten combinations.
| Contact Rating at 25°C - 12VDC (Res.) | 40A, 50A, 70A |
|---|---|
| Maximum Switching Current | 120A, 150A, 240A |
| Electrical Life Operations Min. | 1x10^6 |
| Mechanical Life Operations Min. | 1x10^6 |
The relay is suitable for A/C Blower, A/C Compressor, Engine Cooling Fan, Radiator Fan, Starter Motors, Rear Window Defogger, and Battery Disconnection.
