This document is about the specification of CXOH/CXOHV series TCXO products, which mainly includes frequency range, frequency stability, temperature range, storage range, input voltage, mechanical trim range, input current, output, symmetry, rise/fall time, output voltage, load, phase noise and other information.

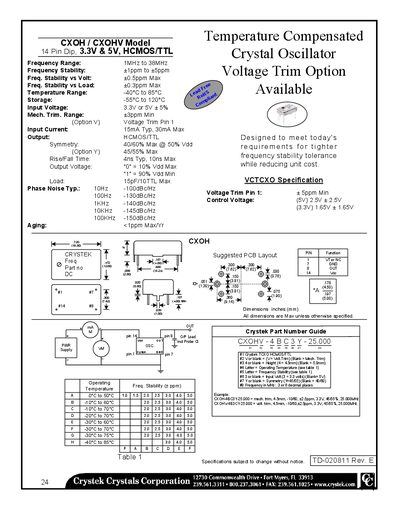

This document provides specifications for the Crystek CXOH and CXOHV series of Temperature Compensated Crystal Oscillators (TCXOs). These devices feature a frequency range from 1MHz to 38MHz and offer voltage trim options for fine-tuning frequency stability. The oscillators are designed with HCMOS/TTL output logic.
| Frequency Range | 1MHz to 38MHz |
|---|---|
| Input Voltage (3.3V Option) | 1.65V + 1.65V |
| Input Voltage (5V Option) | 2.5V + 2.5V |
| Aging | <1 ppm Max/Yr |
