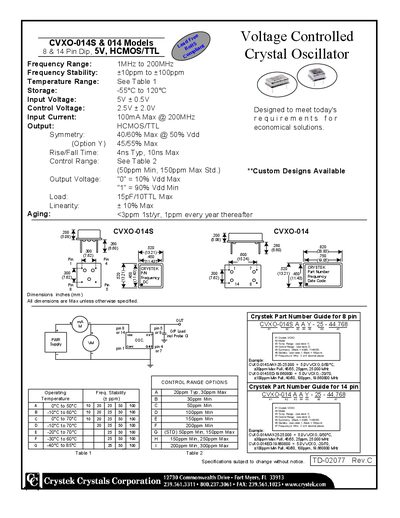

This datasheet provides the specifications of Crystek CVXO-014S & 014 series products, including frequency range, frequency stability, temperature range, storage conditions, input voltage, control voltage, input current, output, symmetry, rise/fall time, control range, output voltage, load, linearity, etc.
The CVXO-014S series are 8‑ and 14‑pin dip voltage‑controlled crystal oscillators designed for HCMOS/TTL applications. They operate from 1 MHz to 200 MHz with frequency stability ranging from +10 ppm to +100 ppm and can handle up to 100 mA input current at 200 MHz.
Key features include a -55 °C to 120 °C temperature range, 5 V nominal supply (5 V + 0.5 V tolerance), control voltage of 2.5 V + 2.0 V, typical rise/fall time of 4 ns (max 10 ns), and load capacitance of 15 pF/10 TTL max. Custom designs are available, and detailed part‑number guides are provided for both 8‑pin and 14‑pin configurations.
| Frequency Range | 1 MHz to 200 MHz |
|---|---|
| Frequency Stability | +10 ppm to +100 ppm |
| Temperature Range | -55 °C to 120 °C |
| Control Voltage | 2.5 V + 2.0 V |
| Input Current | 100 mA max @ 200 MHz |
| Rise/Fall Time | 4 ns typical, 10 ns max |
| Load Capacitance | 15 pF / 10 TTL max |
| Aging | <3 ppm 1st/yr, 1 ppm/yr thereafter |
The CVXO-014S operates from 1 MHz up to 200 MHz.
It is rated for temperatures between -55 °C and +120 °C.
Typical rise/fall time is 4 ns, with a maximum of 10 ns.
It can draw up to 100 mA at 200 MHz.
