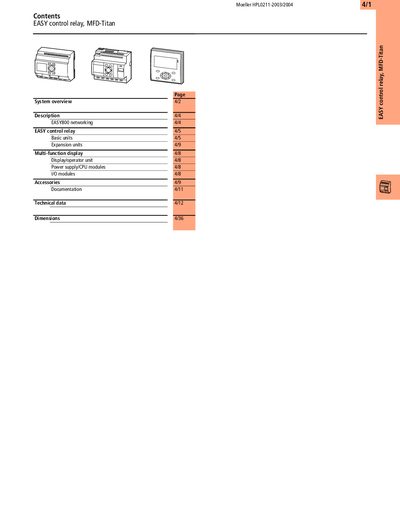

This document mainly introduces the basic functions and characteristics of easy control relay, MFD-Titan, including electrical characteristics, external dimensions, control mode, etc.
The Moeller EASY control relay MFD‑Titan is a modular control system offering a range of basic and expansion units, digital and analog I/O, and multiple networking interfaces. It supports both AC (100‑240 V) and DC (24 V) power supplies and provides extensive timing, counting, and arithmetic functions.
The document lists detailed technical data, unit descriptions, dimensions, and connectivity options such as DeviceNet, PROFIBUS‑DP, CANopen, and AS‑Interface, making it a comprehensive reference for system designers and installers.
| Power supply (AC) | 100‑240 V, 50/60 Hz |
|---|---|
| Power supply (DC) | 24 VDC |
| Digital inputs | 8 (2 usable as analog inputs) |
| Relay outputs | 4 (max. 10 A) |
| Operating temperature range | -25 °C to +55 °C |
| Maximum I/O capacity | 320 digital inputs and outputs |
The relay operates from –25 °C up to +55 °C.
It can be powered from AC 100‑240 V (50/60 Hz) or from a 24 VDC supply.
Each unit provides 8 digital inputs, of which 2 can be used as analog inputs.
