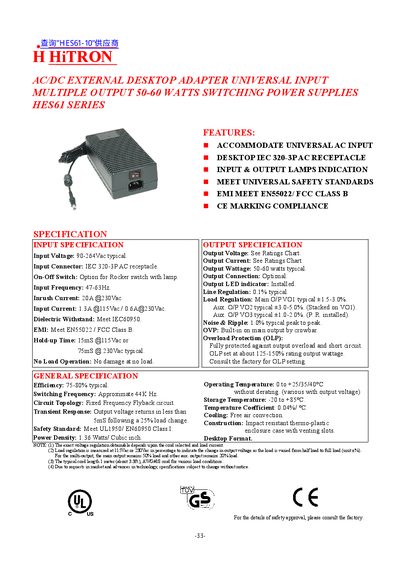

HES61 series AC/DC external desktop adapter features universal input and multiple output, 50-60 watt rated output power.
The HES61 series is a desktop‑format AC/DC switching power supply with universal 90‑264 Vac input, IEC‑320‑3P receptacle, and LED indicators for input and output. It meets UL1950/EN60950 Class I safety, EN55022/FCC Class B EMI limits, and carries CE marking.
Key specifications include typical output power of 50‑60 W, efficiency of 75‑80 %, line regulation of 0.1 % and load regulation of ±1.5‑3 %, and a compact 531 g enclosure. The device offers built‑in over‑voltage and overload protection and a range of single, dual, and triple output configurations.
| Input Voltage | 90‑264 Vac typical |
|---|---|
| Output Wattage | 50‑60 W typical |
| Efficiency | 75‑80 % typical |
| Switching Frequency | ≈44 kHz |
| Power Density | 1.36 W/in³ |
| Operating Temperature | 0 °C to +40 °C without derating |
| Weight | 531 g (18.73 oz) |
| Line Regulation | 0.1 % typical |
| Overload Protection | Fully protected, set at 125‑150 % rating |
| Safety Standard | UL1950 / EN60950 Class I |
It accepts a universal AC input of 90‑264 Vac typical.
The adapter delivers 50‑60 W typical output power.
Yes, it has built‑in overload protection that is fully protected against output overload and short circuit.
