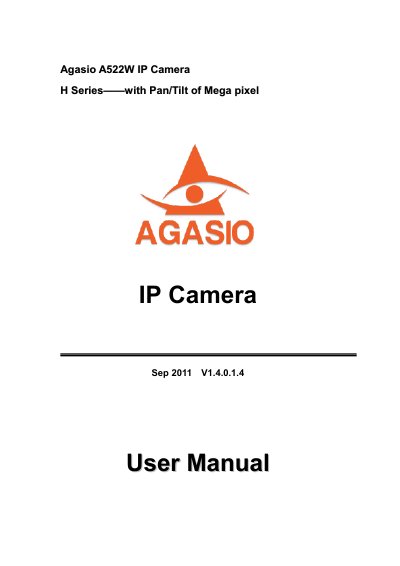

This is a user manual of Agaassio A55222W IP Camera H Series. It details the package contents, functions and features, technical parameters, appearance and interface, LAN connection, WAN connection, DDNS, video settings, network settings, alarm settings, advanced settings, and system settings.
This manual covers the Hikvision AA552222WW IP Camera, a network‑connected camera with built‑in Pan/Tilt, infrared night vision, and dual‑stream video. It explains the package contents, hardware specifications, and basic operation of the device.
The document guides users through appearance and interface details, LAN and WAN access, video/audio configuration, alarm settings, and advanced applications such as centralised control software and third‑party video players. It also includes troubleshooting steps like resetting to factory defaults.
| Image Capture Sensor | Mega pixels CMOS sensor |
|---|---|
| Minimum Illumination | 0 Lux (IR lights on) |
| Lens | f=3.6mm, F=2.0, Fixed Iris |
| Pan Coverage | 350° |
| Tilt Coverage | 100° |
| First Stream Resolution | 720P (1280×720) / 640×360 / 320×180 |
| Audio Compression | G.711 / G.726 |
| Power Supply | DC 5V, <6W consumption |
| Weight | 374 g |
| Operating Temperature | -20 °C to 50 °C |
The camera ships with IP address 192.168.0.158, HTTP port 80, username admin and password 123456.
