GP250 relay is a direct current coil relay with polarity, sealing, double contacts, rated current of 2 amps, rated voltage of 50 volts, weight of 11 grams, and external dimensions of 20.4mm x 10.4mm x 10.2mm with a corrosion protected metal casing.
The GP250 is a polarized, latching hermetically sealed relay with a 2 A / 50 Vdc contact rating. It is compact (20.4 mm × 10.4 mm × 10.2 mm), lightweight (11 g max), and operates over a wide temperature range from –65 °C to +125 °C.

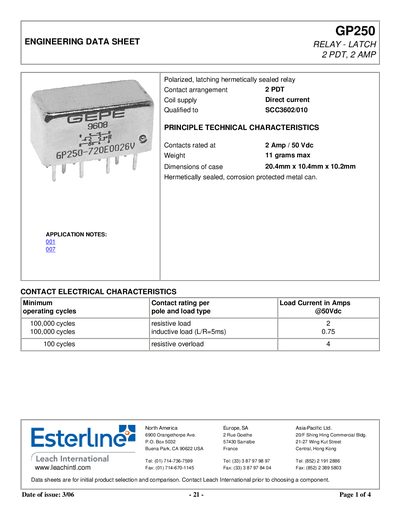

The data sheet details coil characteristics for 6 V, 12 V and 26 V versions, mounting styles, terminal types, and includes application notes on coil suppression techniques, bifilar coils, and diode‑resistor networks to control surge voltage and contact speed.
| Contact rating | 2 A / 50 Vdc |
|---|---|
| Weight | 11 g max |
| Dimensions (L × W × H) | 20.4 mm × 10.4 mm × 10.2 mm |
| Operating temperature range | -65 °C to +125 °C |
| Dielectric strength (ground to coil) | 1000 Vrms / 50 Hz |
| Coil resistance at 25 °C | 40 Ω (6 V), 150 Ω (12 V), 720 Ω (26 V) |
| Operate time (nominal voltage) | 4 ms max |
| Release time | 4 ms max |
| Initial contact resistance | 50 mΩ max |
The GP250 contacts are rated for 2 A at 50 Vdc.
The relay measures 20.4 mm × 10.4 mm × 10.2 mm.
It can operate from –65 °C up to +125 °C.
At 25 °C the coil resistance is 40 Ω for 6 V, 150 Ω for 12 V, and 720 Ω for 26 V.
