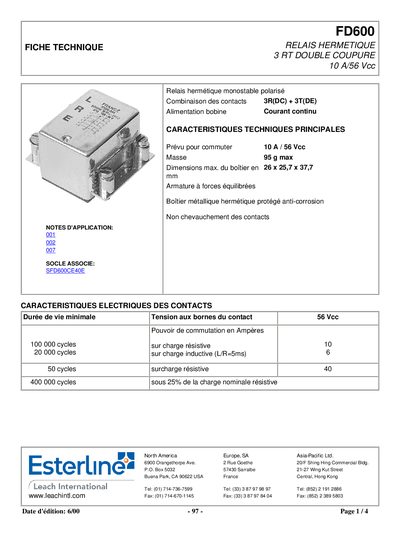

This document is a technical specification of FD600 3RT DOUBLE COUPURE 10 A/56 Vcc. It mainly introduces the product's features and characteristics, including application, power supply, weight, size, electromagnetic characteristics, etc.
The FD600 is a monostable hermetic relay with a 3R (DC) + 3T (DE) contact arrangement, designed for 10 A/156 Vdc switching. It features a metal‑sealed, anti‑corrosion housing and offers various coil voltage options.
The datasheet provides detailed electrical characteristics, coil specifications, mechanical dimensions, environmental limits and application notes on contact life, switching power and mounting options. This manual is written in French.
| Maximum switching current | 10 A |
|---|---|
| Maximum switching voltage | 156 Vdc |
| Coil nominal voltage | 28 V |
| Weight | 95 g max |
| Dimensions (L × W × H) | 26 × 25.7 × 37.7 mm |
| Contact life (resistive load) | 100 000 cycles |
| Contact life (inductive load) | 20 000 cycles |
| Operating temperature range | -65 °C to +125 °C |
The relay is rated for 10 A at 156 Vdc.
Up to 100 000 cycles on a resistive load and 20 000 cycles on an inductive load.
