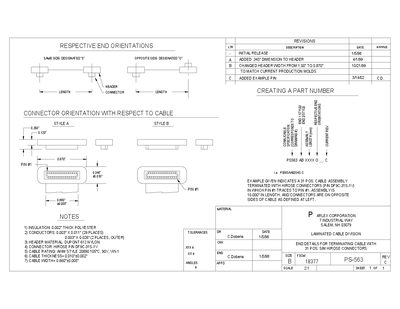

The file is the technical documentation for Arlex's PS-563 2:1 end details for terminating cable with 31 pos. S/M Hirose connectors.
The Arlex laminated cable is offered in two styles (A and B) and is constructed with a polyester insulation layer and copper conductors. The cable uses a Dupont 612 nylon header and Hirose DF9C-31S-1V connectors.
Key dimensions are a thickness of 0.010" ± 0.002" and a width of 0.660" ± 0.005". The cable is rated AWM STYLE 20890 for 105 °C, 90 V, VW‑16 operation. End‑detail specifications define connector orientation and part‑numbering for 31‑position assemblies.
| Insulation material | Polyester |
|---|---|
| Insulation thickness | 0.002 in |
| Conductor size (Style A) | 0.003" x 0.011" (29 places) |
| Conductor size (Style B) | 0.003" x 0.026" (2 places, outer) |
| Header material | Dupont 612 nylon |
| Connector part number | HIROSE DF9C-31S-1V |
| Cable rating | AWM STYLE 20890, 105 °C, 90 V, VW‑16 |
| Cable thickness | 0.010 in ±0.002 |
| Cable width | 0.660 in ±0.005 |
| Header width (updated) | 0.870 in |
The cable uses a polyester insulation that is 0.002 inches thick.
The cable is terminated with a Hirose connector, part number DF9C-31S-1V.
It is rated AWM STYLE 20890 for 105 °C, 90 V, VW‑16 operation.
