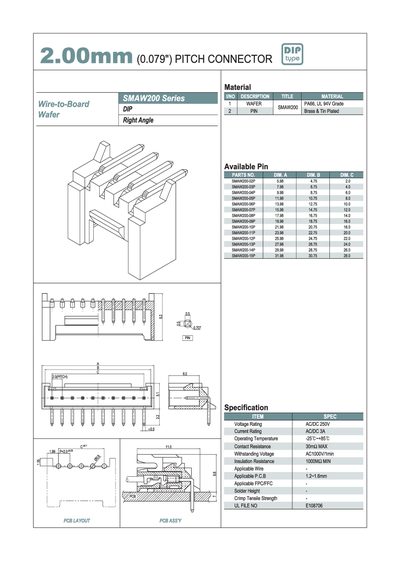

The SMAW200 series from Boerch provides 2.00 mm (0.079") pitch wire‑to‑board connectors in right‑angle and straight configurations. Parts are available in brass with tin plating and meet UL 94V grade requirements.
Key specifications include a 250 V AC/DC voltage rating, 3 A current rating, operating temperature range from –25 °C to +85 °C, contact resistance up to 30 mΩ, and insulation resistance of at least 1000 MΩ. Dimensions and pin counts for each part number are listed in the table.
| Voltage Rating | 250 V AC/DC |
|---|---|
| Current Rating | 3 A AC/DC |
| Operating Temperature | -25 °C ~ +85 °C |
| Contact Resistance | 30 mΩ MAX |
| Withstanding Voltage | AC 1000 V / 1 min |
| Insulation Resistance | 1000 MΩ MIN |
| Applicable PCB Thickness | 1.2 mm – 1.6 mm |
| Solder Height | 2 mm |
The SMAW200 connector is rated for 250 V AC/DC.
It can carry up to 3 A AC/DC.
The connector operates from –25 °C to +85 °C.
It is suitable for PCB thicknesses between 1.2 mm and 1.6 mm.
