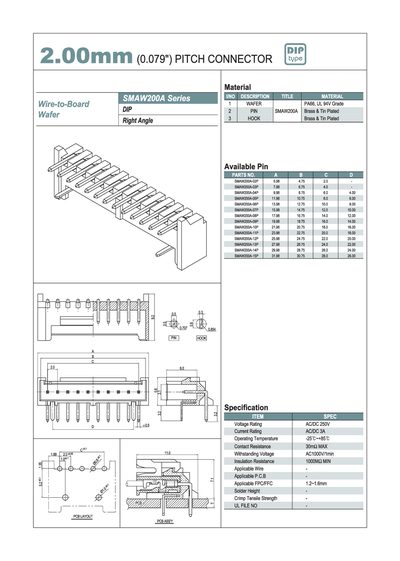

The SMAW200A series from Vee provides 2.00 mm (0.079") pitch connectors for wire‑to‑board applications. Options include wafer, DIP, right‑angle, and standard straight configurations, each available in a range of pin counts.
Electrical specifications include a 250 V AC/DC rating, 3 A current rating, operating temperature from –25 °C to +85 °C, 30 mΩ maximum contact resistance, and 1000 MΩ minimum insulation resistance. Part numbers such as SMAW200A‑02P, SMAW200A‑05P, etc., specify the exact pin count and dimensions.
| Voltage Rating | 250 V AC/DC |
|---|---|
| Current Rating | 3 A AC/DC |
| Operating Temperature | -25 °C to +85 °C |
| Contact Resistance | 30 mΩ max |
| Withstanding Voltage | AC 1000 V / 4 min |
| Insulation Resistance | 1000 MΩ min |
The connector has a 2.00 mm (0.079") pitch.
It is rated for 250 V AC/DC and a maximum current of 3 A.
The connector operates from –25 °C up to +85 °C.
