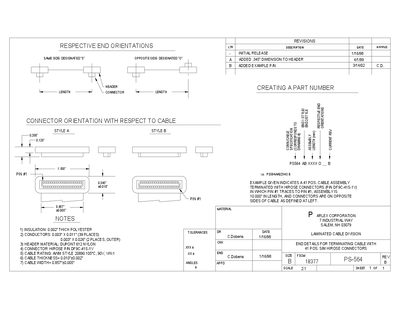

This document details the end details for PS-564 and how to terminate the cable with 41 pos S/M HIROSE connectors
The PS-564 is a laminated cable assembly designed for high‑temperature and voltage applications. It features polyester insulation, Dupont 612 nylon header material, and Hirose 41‑position connectors.
Key specifications include insulation thickness of 0.002", conductor size of 0.003" × 0.011", overall cable width of 0.857" ± 0.005", thickness of 0.010" ± 0.002", and a rating of 105 °C, 90 V, VW‑1 per AWM STYLE 20890.
| Insulation thickness | 0.002" polyester |
|---|---|
| Conductor size | 0.003" × 0.011" (39 places) |
| Header material | Dupont 612 nylon |
| Cable rating | AWM STYLE 20890, 105 °C, 90 V, VW‑1 |
| Cable thickness | 0.010" ± 0.002" |
| Connector part number | Hirose DF9C-41S-1V |
| Cable width | 0.857" ± 0.005" |
| Assembly length | 10.000" |
The cable uses a Hirose DF9C-41S-1V connector.
It is rated AWM STYLE 20890, suitable for 105 °C, 90 V, VW‑1.
The header is made of Dupont 612 nylon.
