This document introduces the coding rules and packaging specifications of the DE series polyester capacitors

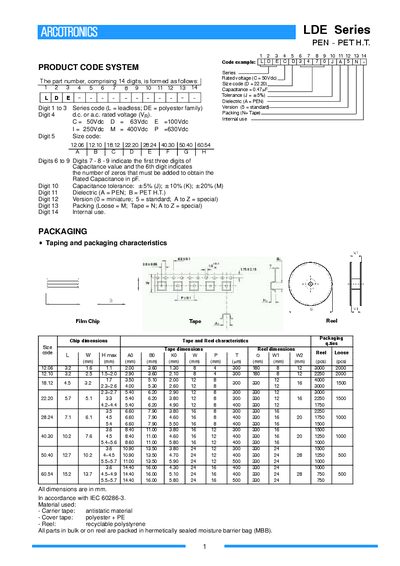

The LDE Series PEN‑PET H.T. capacitors from Arcotronics are presented with a detailed part‑numbering scheme, electrical ratings and mechanical dimensions. The handbook lists the full range of capacitance values, voltage ratings, tolerance codes and dielectric types for both standard and miniature versions.
Additional sections cover recommended packaging, moisture‑barrier bag handling, mounting land dimensions, solder paste composition, thermal profiles and corrective actions for common assembly defects. Practical guidance on storage, humidity control and hand‑assembly safety is also included.
| Rated voltage | C=50 Vdc, D=63 Vdc, E=100 Vdc, M=250 Vdc, P=400 Vdc |
|---|---|
| Capacitance tolerance | J ±5 %, K ±10 %, M ±20 % |
| Dielectric type | A = PEN, B = PET H.T. |
| Moisture barrier bag shelf life | Minimum 12 months |
