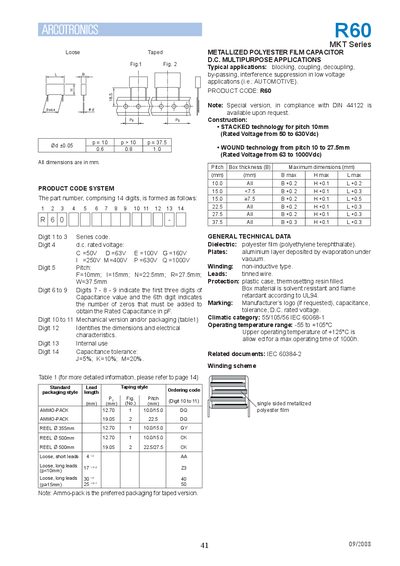

This document describes the features and characteristics of the 09/2008 41 R60 MKT series metallized polyester film capacitors, which are suitable for blocking, coupling, decoupling, bypassing, and interference suppression in low voltage applications, such as automotive. A special version compliant with DIN 44122 is available upon request.
This document describes the R60 series of metallized polyester film capacitors, covering the product code system, mechanical versions, packaging options and general technical data such as dielectric material, lead type and climatic category. It includes detailed tables of dimensions, pitch options and tolerance codes.
Electrical characteristics, rated voltage ranges, temperature limits and test methods are presented, along with performance data for capacitance, dissipation factor, insulation resistance and solder‑heat resistance. The handbook is intended for designers and engineers selecting capacitors for low‑voltage DC applications, including automotive and industrial use.
| Dielectric material | polyester film (polyethylene terephthalate) |
|---|---|
| Rated voltage range | 50 Vdc – 1000 Vdc |
| Capacitance range | 1 nF – 220 µF |
| Tolerance codes | J = 5 %, K = 10 %, M = 20 % |
| Operating temperature range | -55 °C to +105 °C |
| Climatic category | 55/105/56 IEC 60068‑1 |
The R60 capacitors are rated from 50 Vdc up to 1000 Vdc.
Tolerance codes are J (5 %), K (10 %), and M (20 %).
They operate from –55 °C to +105 °C.
The capacitors use a polyester film (polyethylene terephthalate) dielectric.
