The PULNiX TM-745E/TM-765E is a high‑resolution, interline‑transfer CCD camera with a 2/3‑inch imager, variable electronic shutter, and rugged design for machine‑vision, medical, and surveillance applications. It offers low lag, high sensitivity (0.5 lux minimum illumination) and resistance to magnetic fields, vibration and shock.

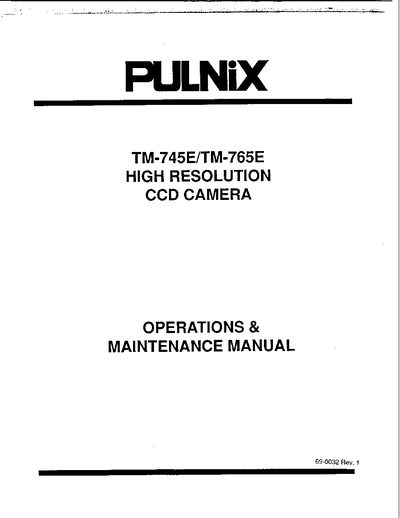

This Operations & Maintenance Manual covers camera features, physical dimensions, accessories, lens mounting, power and video connections, shutter control, external sync, interlace/non‑interlace modes, factory board settings, and warranty information. It includes wiring diagrams, specifications tables, and step‑by‑step setup procedures.
| Imager type | 2/3 inch interline transfer CCD |
|---|---|
| Pixel array (TM‑745E) | 768 (H) × 493 (V) |
| Pixel array (TM‑765E) | 756 (H) × 581 (V) |
| Cell size (TM‑765E) | 11.0 µm × 11.0 µm |
| Power consumption | 4.0 W |
| Minimum illumination | 0.5 lux (F=1.4) without IR cut filter |
| Physical dimensions (camera body) | 51 mm × 44 mm × 159 mm, 190 g |
The camera consumes only 4.0 W of power.
The camera warms up in no more than half a second, and shooting can begin within one second after power‑on.
The camera can operate with as little as 0.5 lux (F=1.4) without an IR cut filter.
