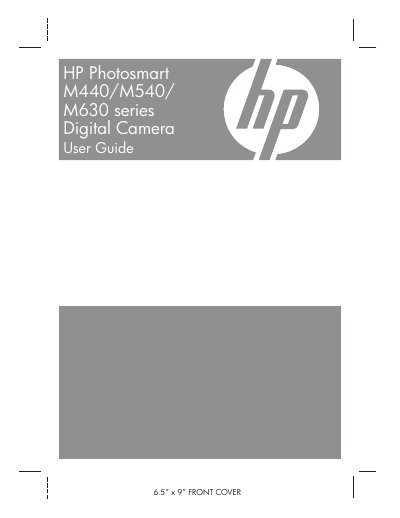

This document is the user guide for the HP Photosmart M440/M540/M630 series digital camera, providing instructions on how to use the camera and its various features.
This manual introduces the HP Photosmart M440, M540 and M630 series digital cameras, showing how to install batteries, insert and format memory cards, and configure basic settings such as language, region and date/time.
It also explains how to take pictures and video clips, review and edit images, transfer files to a computer, print directly, and resolve common problems. Safety and battery‑care tips are provided along with full specifications of the cameras. This manual is written in Chinese.
| Resolution (M630 series) | 7.2 MP effective |
|---|---|
| Resolution (M540 series) | 6.2 MP effective |
| Resolution (M440 series) | 5 MP effective |
| Sensor size | 7.34 mm diagonal (1/2.5‑inch) |
| Lens focal length | Wide 5.9 mm – Telephoto 17.7 mm |
| Optical zoom | 3× |
| Digital zoom (M630) | 7× |
| Built‑in flash | Yes, 6‑second typical recharge |
| Internal storage | 16 MB flash memory |
| Memory card support | SD/SDHC 32 MB–8 GB, up to 2000 images |
| Power source | Two AA batteries (Alkaline, Photo Lithium, or NiMH) |
| Weight | 132 g (4.65 oz) without batteries |
The camera can store up to 2000 images on a memory card.
It runs on two AA batteries, which can be alkaline, photo lithium, or rechargeable NiMH.
Turn off the camera, open the battery/memory card door, select “Format Card” and confirm; always format new cards before first use.
Select the desired language on the screen and press the button; later you can change it via the Camera Setup Menu.
