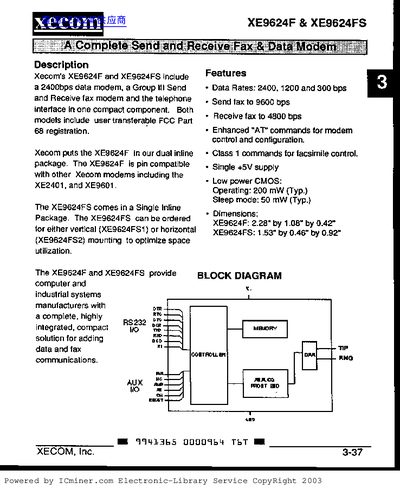

The XE9624F and XE9624FS are compact modem components that combine a 2400 bps data modem, fax modem, and telephone interface in a single package. Both models are FCC Part 68 registered and are pin‑compatible with other XECOM modems.
Key specifications include data rates of 2400/1200/300 bps, fax send/receive rates of 9600/4800 bps, a single +5 V supply, low power consumption (40 mA active, 10 mA sleep), and dimensions of 2.28" × 1.08" × 0.42" (XE9624F) or 1.53" × 0.46" × 0.92" (XE9624FS). The document also lists pin descriptions, AT command sets, result codes, and electrical parameters such as DTMF level and ring‑detect sensitivity.
| Data Rates | 2400, 1200, 300 bps |
|---|---|
| Fax Send Rate | 9600 bps |
| Fax Receive Rate | 4800 bps |
| Supply Voltage | 5 V ±5% |
| Supply Current (active) | 40 mA |
| Sleep Mode Current | 10 mA ( <50 mW ) |
| Dimensions (XE9624F) | 2.28" × 1.08" × 0.42" |
| Dimensions (XE9624FS) | 1.53" × 0.46" × 0.92" |
| Ring Detect Sensitivity | 38 Vrms |
| Telephone Line Impedance | 600 Ω |
The modem supports data rates of 2400, 1200 and 300 bps.
In sleep mode the power consumption drops to less than 50 mW (10 mA).
The XE9624FS measures 1.53 in × 0.46 in × 0.92 in.
