The Xecom XE9624F and XE9624FS are compact integrated modems that combine a 2400 bps data modem, Group III fax capabilities, and a telephone interface in a single package. Both models support FCC Part 68 registration and are pin‑compatible with other Xecom modems.

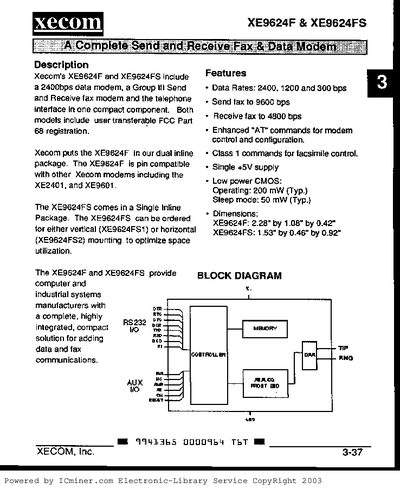

The document provides mechanical dimensions, pin descriptions, AT command sets, result codes, register settings, and power‑management details, enabling designers to integrate the modems into industrial or computer systems.
| Data Rates | 2400, 1200 and 300 bps |
|---|---|
| Fax Send Rate | 9600 bps |
| Fax Receive Rate | 4800 bps |
| Supply Voltage | 4.75 V – 5.25 V |
| Sleep Mode Current | 10 mA |
| Typical Operating Power | 40 mA |
| Dimensions (XE9624FS) | 1.53" × 0.46" × 0.92" |
It supports data rates of 2400, 1200 and 300 bps.
Fax can be sent at up to 9600 bps and received at up to 4800 bps.
The modem operates from 4.75 V to 5.25 V.
In sleep mode the current consumption drops to less than 50 mW, about 10 mA.
