The ADG736L is a low voltage 2.5Ω dual SPDT switch produced by Analog Devices. It is suitable for USB 1.1 signal switching circuits, mobile phones, PDAs, battery-powered systems, communication systems, sample-and-hold systems, audio signal routing, audio and video switching, and mechanical reed relay replacement.
The ADG736L is a monolithic CMOS dual SPDT switch that operates from a single 1.8 V to 5.5 V supply. It is intended for USB 1.1 signal switching, cell phones, PDAs, battery‑powered systems, audio/video routing and mechanical reed relay replacement.

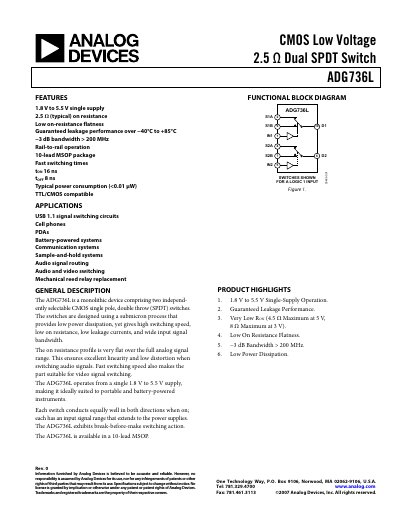

The document provides electrical specifications, pin descriptions, typical performance curves, test circuits, mechanical dimensions and ordering information for the 10‑lead MSOP package.
| Supply voltage range | 1.8 V to 5.5 V |
|---|---|
| Typical on‑resistance (RON) | 2.5 Ω |
| Bandwidth (‑3 dB) | 200 MHz |
| Turn‑on time (tON) | 12 ns typ |
| Turn‑off time (tOFF) | 8 ns typ |
| Typical power consumption | <0.01 µW |
| Input high voltage (VINH) | 2.4 V min |
| Input low voltage (VINL) | 0.8 V max |
| Source off leakage (IS OFF) | ±0.01 nA typ |
| Package type | 10‑lead MSOP |
The device operates from a single 1.8 V to 5.5 V supply.
The typical on‑resistance is 2.5 Ω.
Typical turn‑on time is 12 ns and turn‑off time is 8 ns.
It is supplied in a 10‑lead MSOP package.
