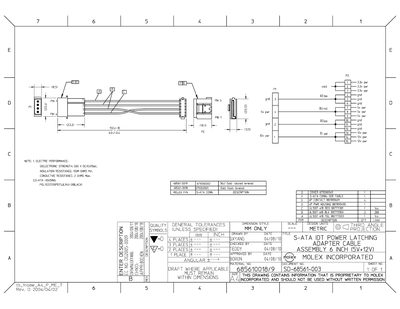

This data sheet provides the key electrical characteristics of the Molex 68561-0019 S-ATA connector, including dielectric strength, insulation resistance and conductive resistance. It also lists the mechanical housing material and the types of terminals used.
Additional information includes part numbers for gold‑plated and flash terminals, pin assignments, and material specifications for the connector housing.
| Dielectric Strength | 500 V DC/0.01 sec |
|---|---|
| Insulation Resistance | 100 MΩ Min. |
| Conductive Resistance | 2 Ω Max. |
| Housing Material | Polyester (UL94V‑DIBLACK) |
The dielectric strength is 500 V DC for 0.01 seconds.
The insulation resistance is at least 100 MΩ.
The conductive resistance is limited to 2 Ω max.
